About this item:
-
Plug & Play PC Diagnostics: Connects directly to any desktop PC or laptop via an integrated USB cable for direct data recording.
-
Advanced MIR Spiro Software: Includes the licence-free, latest generation MIR Spiro software featuring comprehensive customisable reporting and PRE/POST Bronchodilator comparisons.
-
Cross-Platform Performance: Designed to function efficiently and seamlessly across both Windows and MacOS operating systems for a stable, reliable user experience.
-
Automated BTPS Conversion: Features an embedded semiconductor temperature sensor (0–45°C) to handle automatic BTPS conversion flawlessly.
-
Gold-Standard Compliance: Fully complies with the latest international guidelines including ATS/ERS 2019 standards, ISO 26782, and ISO 23747.
-
Interactive Pediatric Incentives: Enhances patient collaboration and engagement during real-time diagnostic testing with interactive on-screen animations.
Product Description:

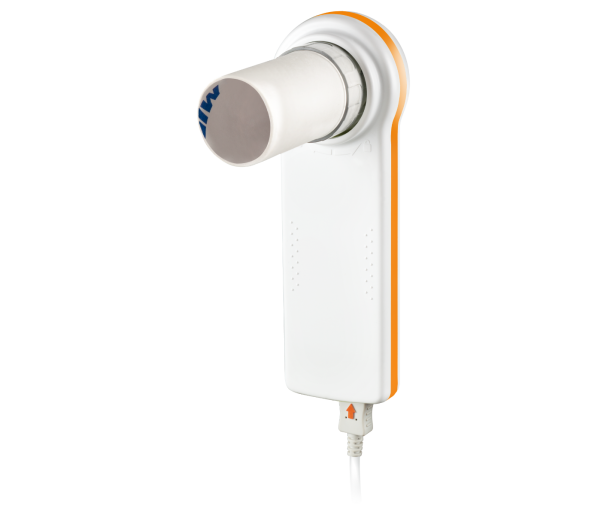

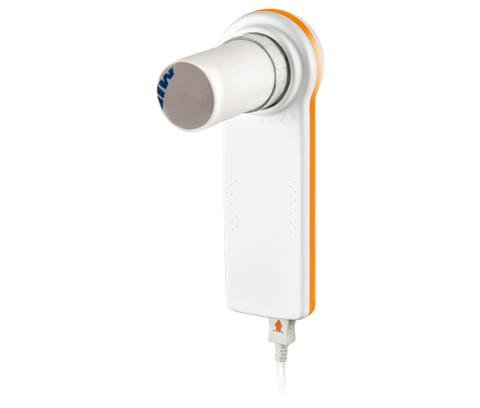

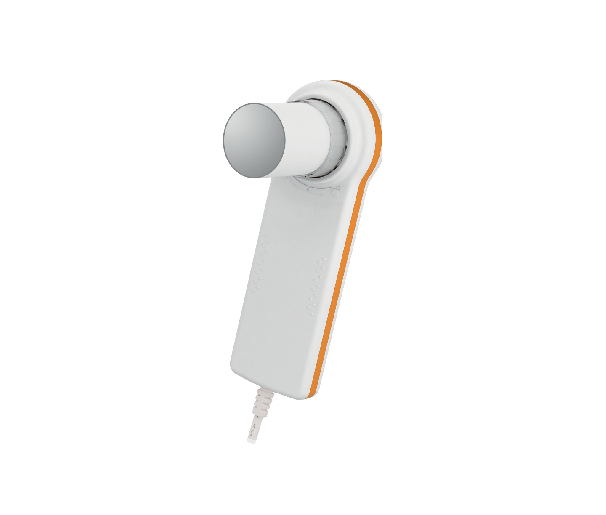

Step into the future of clinical respiratory care with the MIR Minispir Spirometer. Tailored specifically for primary care facilities, secondary care clinics, and smoking cessation programs, this powerful PC-based device brings hospital-grade diagnostics straight to your laptop or desktop computer.

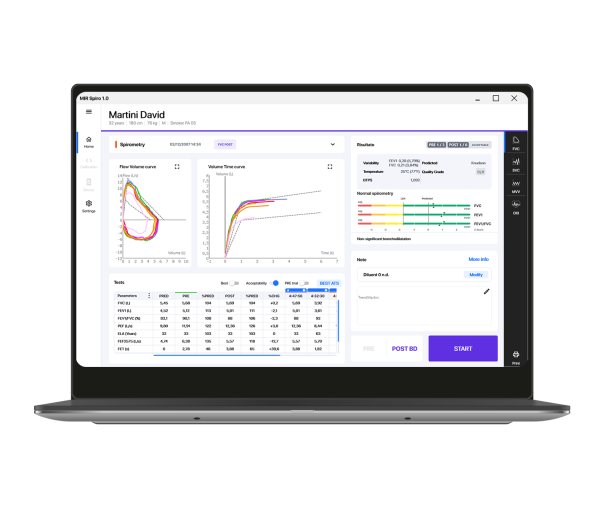

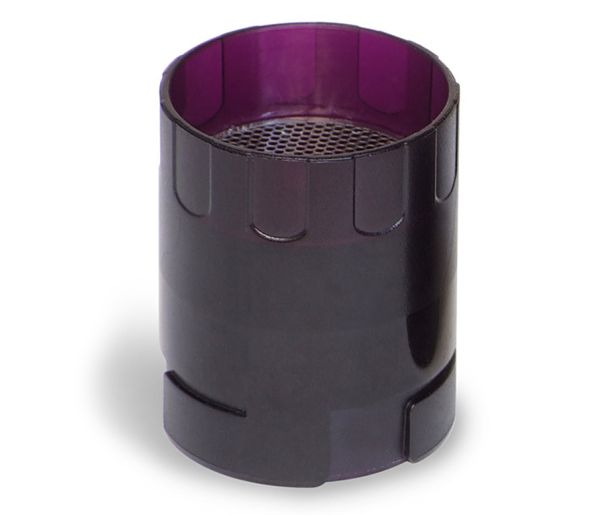

Operating via the highly secure and intuitive MIR Spiro Software, the Minispir records real-time Flow/Volume loops and Volume/Time curves directly on your screen without the need for an internal memory device or battery power. Results are automatically tracked using Global GLI predicted values, Z-scores, and LLN, then compiled into clear, customizable PDF reports that seamlessly integrate with Electronic Medical Records (EMR/EHR). Supplied with a factory pre-calibrated, eco-friendly reusable turbine, this system is engineered for continuous clinical use and maximum diagnostic depth.
Product Specifications:
-
Brand/Manufacturer: MIR (Medical International Research)
-
SKU/Product Code: MR-911006T
-
Dimensions: 142 x 49.7 x 26 mm
-
Weight: 65 g
-
Flow Sensor Type: Bi-directional digital turbine
-
Spirometry Flow Range: ±16 L/s
-
Volume Accuracy: ±3% or 50 mL (±2.5% or 50 mL via technical update)
-
Flow Accuracy: ±5% or 200 mL/s
-
Connectivity: Integrated USB 2.0 connection
-
Power Supply: 5V via USB connection (0.25W power consumption)
-
Tests Available: FVC, VC, IVC, MVV, and PRE-POST Bronchodilator comparison
-
Key Parameters Measured: FVC, FEV1, FEV1/FVC%, FEV3, FEV3/FVC%, FEV6, FEV1/FEV6%, PEF, FEF25%, FEF50%, FEF75%, FEF25-75%, FET, Vext (BEV), Lung Age (ELA), FIVC, FIV1, PIF, VC, IVC, IC, ERV, VT, VE, Rf, and more.
-
Safety Certifications: CE 0476, FDA 510(k), MDR 2017/745, Class II Medical Device
